HISEA is the foremost innovator in the field of RF jamming

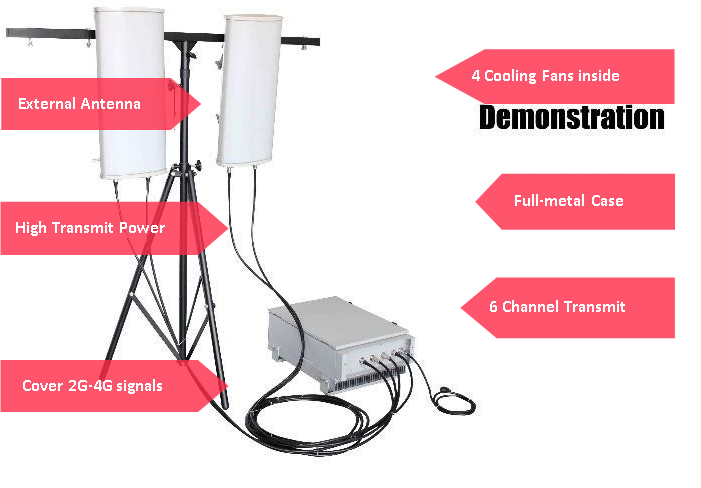

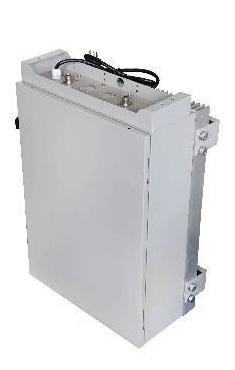

High Power Outdoor / Indoor Waterproof Prison Jammer

Model NO.: VIP-44
Export Markets: Global
Trademark: VECANO
Origin: China
description: This jammer is a waterproof model. Using high quality waterproof case, ensure stability of the equipment ,even work in bad weather conditions. Equipped with special high gain directional planar antenna or fiberglass omni-directional whip antenna, the jammer can effective block CDMA/GSM/DCS /3G/ LTE/WIMAX . Use the overseas advanced chip and technology . With independent modular design, it keeps high operation efficiency, and avoid mutual interference.

Technical Consultation

Product details introduction:

Specifications:

Total Output power180W
Cover Radius50-100m(under Signal level ≤-85dBm)@according to the signal density mobile network
Jamming typeSweep Jamming
Antenna TypeDirectional Antenna or Omini-directional antenna
Remote control on/off(3-5m)
Power SupplyAC adapter (50 to 60Hz/100 to 240V AC -DC27V)
Electric Filed (SAR)Compatible with ICNIRP Standards (Human safe)
Operating Temp-20 to +50ºC
Storage Temp-40 to +60ºC
Humidity5%-80%
Dimension(LXWXH)530 x 300x 200mm, not include antennas
Weight30kg


Optional frequency:
1.CDMA/GSM:850-894MHz 30W;
2.GSM: 925-960 MHz 30W;
3.GSM/DCS:1805-1880MHz 10W;
4.3G/UMTS: 2110-2170MHz 10W;
5.4GLte: 790-826MHz 10W;
6.4G/WiMAX: 2620-2690MHz 10W;
7.WIFI2.4G :2400-2485MHz 10W;
8.4G2:2500-2570MHz 10W;
9.L1:1570-1610 MHz 10W;
10.L2:1200-1300MHz 10W;
11.L3:1380-1400 MHz 10W;
12.WIF5.8G:5725-5850MHz 8W;
13.VHF:135-174MHz 30W;
14.UHF: 400-470MHz 30W;
15.RC433MHz: 433MHz 30W;
16.RC315MHz: 315 MHz 30W;
17:CDMA450MHz:450-470MHz 30W;


Competitive Advantage:

1.  Using high quality waterproof case, ensure stability of the equipment  even work in bad weather conditions.

2.with good cooling system, can operate for long time.

3.Using digital interference technology, overall effective suppression of target spectrum.

4.independent module design. Each module can separate switch,disassemble. So it is convenient for maintenance and update.

5. Perfect Alarm System, fully protected circuit in case of disconnection of antennas.


Package contents:

1 pc One main jammer unit

6 pcs Directional Antennas 90 Degree

1 pc Antennas frame with 1.5m cable

1 pc Power cord

1 pc Wireless OFF/ON remote controller 315MHz


Applicable place:

Jammers for prisons and other large sensitive locations such as military or governmental compounds. Homeland Security, Correctional Centers Petrochemical Industry, Sports Venues and Theaters, VIP Convoy Protection, Bomb Prevention/Disposal, Schools and Universities Government and Military, Power Generating Plants.
